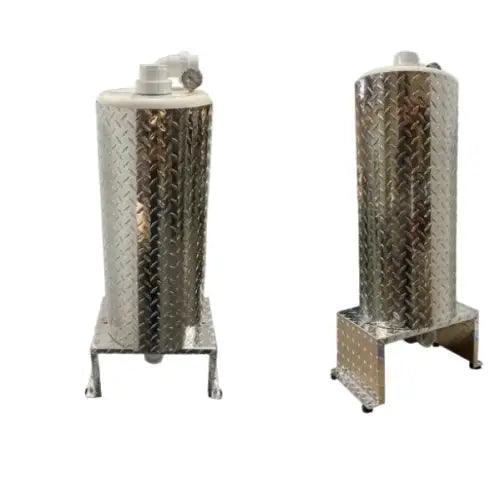

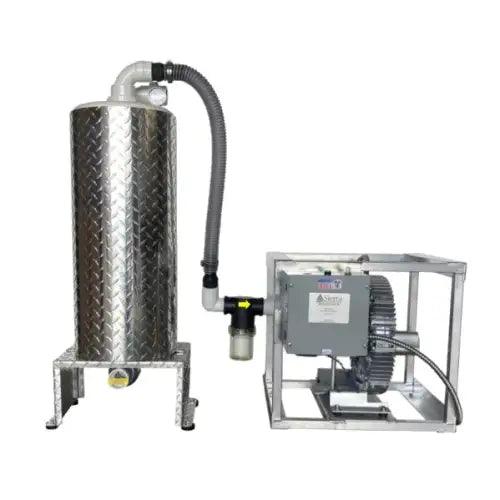

Sierra Dental TV-10 Dry Vacuum System
$6,942.78 USD $6,942.78 USD $5,934.00 USD
In stock
Description

 Sierra Dental TV-10 Dry Vacuum System

TV-10 10 Years Single Dry Vacuum System 1.75HP (1-5 users)

 SPECIFICATIONS:

  • Description Specification (TV-10)
  • Voltage 230 V AC
  • Operating load 8.3 Amps
  • Start-up load 14 Amps
  • Frequency 50 –60 Hz
  • Low voltage remote 24 V AC
  • Max operators 5 users (5 HVE) or (10 SE)
  • Tank capacity 12 Gallons
  • Air flow 62 cfm
  • Ambient temp 41° -104°F
  • Max operating temp 214° F
  • Decibels 61 decibels
  • Thermal Safety Switch YES

TANK SPECIFICATIONS:

  • TANK: V.A.S.
  • Weight: 43 lbs
  • Length: 15”
  • Width: 17”
  • Height: 40”
  • Capacity: 12 Gal.

SITE REQUIREMENTS:

Description Specification (TV-10)

  • Circuit breaker rating 15 Amp (230 Volts)
  • Minimum wire size 14 Gauge
  • Vacuum piping 2” trunk -1 ½’ branch (PVC) Minimum exhaust vent pipe 2” High temperature flex hose, 2" SCH. 80 Gray PVC, 2" galvanized, 2" copper, 3" CPVC.
  • (DO NOT USE 90 DEGREE ELBOWS) (Over 50 feet requires 3-4")
  • Minimum drain line 1 ½” flex pipe 1 ½” Sch. 40 PVC

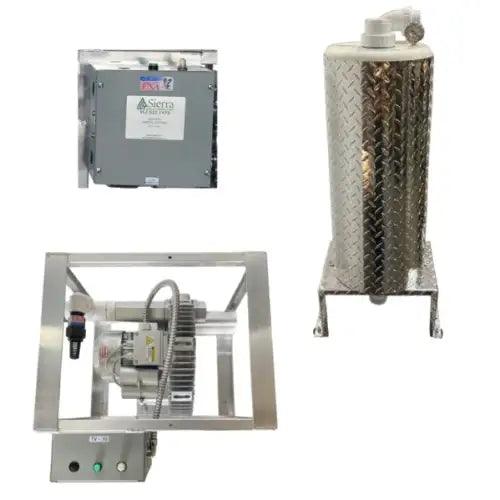

  • WHAT’S INCLUDED 7 a) X1 90 Degree Elbow…………………….………………..….......................................……..(1 ½” mpt x 1 ½” fpt)
  •  X1 90 Degree Elbow………………………………..………………..................….…...(1 ½” male slip x 1 ½” fpt )
  •  X2 Black Nipple..……….....……………….….. ….......................................................(1 ½” mpt x 1 ½” Barbed)
  •  X2 Stainless Steel Hose Clamps………..…….……..……………………......………….....….…..(1 13/16” -2 ¾”)
  •  X1 Vacuum Flex Hose………….……………………………..…………....…..…..…………(1 ½” dia. x 5’ Length)
  • X1 Low Voltage Controller…….…………………...…….……………….....…...…….(24 Volt, Remote Capability)
  •  X1 VAS Collection Tank……………..………....…………......…….....(12 Gallon, 1 ½” Female Slip connections)
  •  X1 Motor Assembly….............….......................................……(1.75 HP, 1 ½” fpt inlet. 2" fpt Outlet “Exhaust”)
  • X1 Vacuum Relief Valve/Tee........................................................................(1 ½" Male Slip x 1 ½" Female Slip)
  •  X1 Filter.......................................................................................................................(1 ½" fpt x 1 ½" male slip)
  •  X1 TV-10………………………...…..……………………………………......….……………….…….USER MANUAL
  •  X1 Warranty Card…………….….………………………………….….....……(Fill Out And Return within 30 days)
