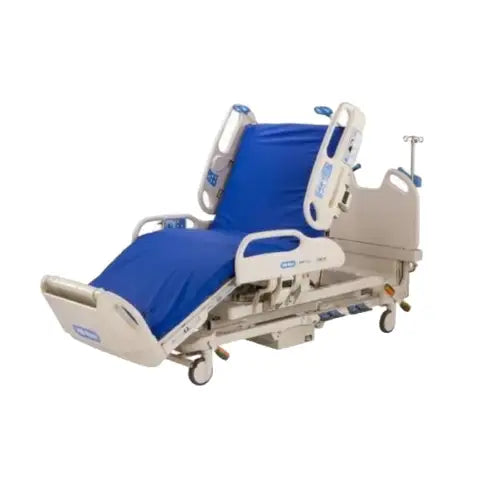

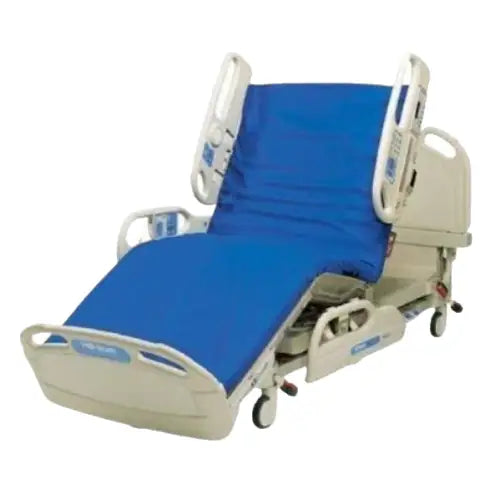

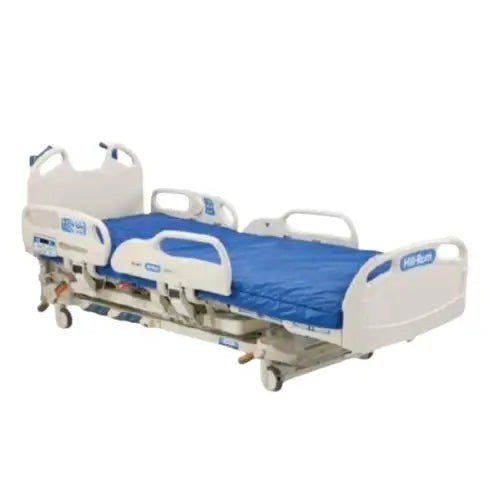

Refurbished Hill-Rom Versacare P3200 hospital bed

Refurbished Hill-Rom Versacare P3200 hospital bed

Refurbishig Process For Hospital Bed:

• Disassemble and disinfect all components
• Inspect all working components for wear and replace defective parts as necessary
• Polish, replate, repaint, or replace all exterior components
• Check  safety switches, lockout switches, foot pedals  replace if necessary
• Inspect, clean, and lubricate head, knee
• Recalibrate brake and steer system
• Inspect and lubricate all pivot points, Siderail latches, instant CPR cables
• Battery backup replacement
• Mattress leaking test
• Hydraulic leaking test
• Electric motor test
• Scale calibration
• siderails cables replacement
• Air Mattress 24 hours test

Description

COMPREHENSIVE SAFETY-PROMOTING MEASURES The VersaCare bed is designed to be able to adjust height, including low positions, to help make it easy for patients to get in and out of bed. Its LowChair ® position allows a patient to sit upright while keeping the bed close to the floor. SafeView ® Alerts offer caregivers a visual indication of the safety condition of the bed, including the status of siderails, brakes, HOB and bed height. If your patient’s head-of-bed is lowered below 30 degrees, the Head-ofBed alarm alerts you of the need to respond. The 3-Level Bed Exit Alarm with advanced sensitivity detects whether the patient is lying in bed, sitting on the edge of bed, or is out of bed.

Patient Weight Limit:

• Patient weight, all surfaces: 500 lbs (227 kg)
• Safe working load, including all accessories: 550 lbs (250 kg)

Patient Controls:

• Siderail patient bed controls: Standard

• Docking pendant: Optional

STANDARD FEATURES

• Scale System
• Side Patient Bed Controls
• SafeView® Alerts*
• Bed Exit Alarm System

TECHNICAL SPECIFICATIONS

Bed:

• Low Position - Floor to Center of Deck: 13" (33 cm)
• Low Position - Floor to Edge of Deck: 17" (43.2 cm)
• High Position - Floor to Center of Deck: 30" (76.2 cm)
• High Position - Floor to Edge of Deck: 34" (86.4 cm)
• Maintains low height when placed in chair: Yes
• Headboard/push handles maintain same height regardless of patient surface height: Yes.

Sleep Surfaces:

• Width: 35.5" (90.2 cm)
• Length - fully extended: 86" (218 cm)
• Length - fully retracted: 75" (191 cm)
• Radiolucent Sleep Deck: No
• Surface Weight Limit: 500 Lbs

Overall Width:

• Siderails Stowed: 37" (94.0 cm)
• Siderails Up: 40" (102.0 cm)

Overall Length:

• Fully Extended: 94.5" (240.0 cm)
• Fully Retracted: 82.5" (210.0 cm)

Bed Angles:

• Head Section: 0ºto 65º
• Knee Section: 0º to 16º
• Foot Section: 0° to -27°
• Max Trend/Reverse Trend: 15° / 10°
• Head and Trend Angle Indicators: Yes

Caster & Braking System:

• Caster Diameter: 5" (12.7 cm)
• with IntelliDrive® power transport: 6" (15.2 cm)
• Optional IntelliDrive® power transport: Yes
• Four Wheel Braking: Yes
• Brakes Lock Both Rolling and Swiveling: Yes

Optional Light Alerts

Feature indicators: Low low bed/chair, siderails down, brake not set, bed exit not armed

Optional Bed Exit Alarm System:

• Sensitivity levels: 3
• Modes: Positioning, Exiting, Out-of-Bed, Alarm Silence

Optional Scale System

• Accuracy: 1% of patient weight
• Weigh in any position (except Trend/Rev Trend): Yes
• Scale weight capacity 500 lbs (227 kg)

Electrical Characteristics:

Backup Battery Power: Standard

Caster and Braking System

• Optional IntelliDrive® power transport Yes
• Caster diameter 5" (12.7 cm)
• with IntelliDrive® power transport 6" (15.2 cm)
• Four-wheel braking Yes
• Brakes lock both rolling and swiveling Yes

BOOST ® ONE-BUTTON FEATURE Helps patients move toward the head of the bed

POINT-OF-CARE ® CONTROL PANEL Uses easy to-read digital displays and simple icons

FULLY-FEATURED LOW BED Adjusted to the optimal height for patient care with full functionality in the lowest position

HANDSFREE ® FOOT PEDAL SYSTEM Allows caregivers to raise and lower the head of the bed and the height of the bed without using their hands

LOWCHAIR ® POSITION Allows your patient to be placed in an upright sitting position while keeping the bed low

FLEXAFOOT™ RETRACTABLE FOOT MECHANISM Allows the caregiver to customize the length of the bed up to 11"
