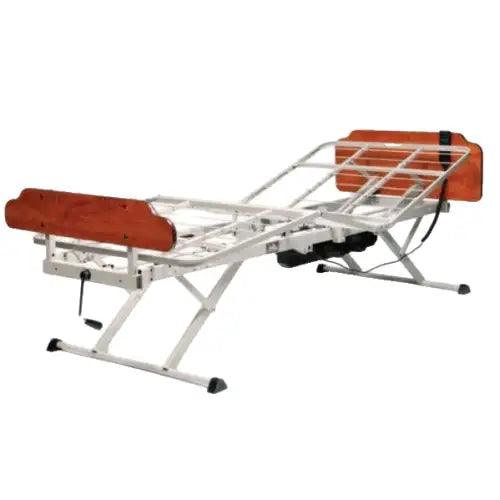

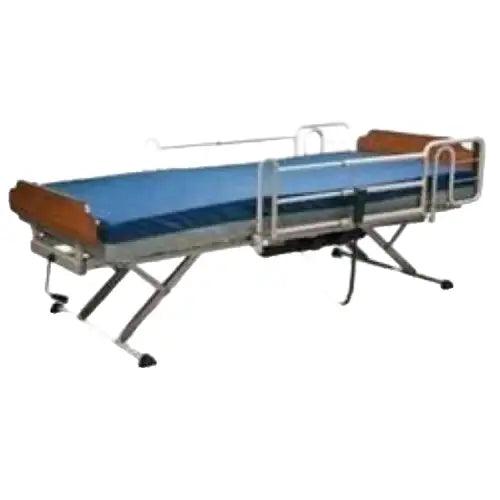

Patriot Lx Semi-Electric Homecare Bed US5000

Regular price $1,030.63 USD Sale price $1,030.63 USD Regular price $880.88 USD
Out of stock
Description

Patriot Lx Semi-Electric Homecare Bed US5000

Features
  • Robust steel grid deck sleep surface provides superior mattress support and easy to clean surface compared to traditional spring decks
  • Head and foot sections can be raised or lowered simultaneously or independently with one hand control.
  • Recessed main frame offers maximum pinch point protection between grid deck and frame – reducing the risk of injury
  • Lightweight design weighs only 118 lbs – lightest bed on the market
  • Bed setup is so simple that it can save on setup time and requires minimal maintenance keeping your technicians time efficient
  • Patent pending integrated HI-LO mechanism makes bed height adjustment easy and reduces potential loss of parts such as HI/LO rod when used as rentals
  • Self contained crank for semi-electric that can be used at either end makes adjustment from low 10" to 20" easy and even allows for trendelenburg and slant positioning
  • Patent pending rail slots in frame ensure quick and proper rail placement
  • Single motor unit is designed for easy installation, requires less maintenance and provides the ultimate in quiet, smooth operation
  • Attractive, “home-like” thermo fused bed ends offer a less institutional look and eliminate a bed component that often requires frequent repair and maintenance
  • Features SilverSolutions- an anti-microbial technology built into the paint that protects against bacteria and odor
  • During a power failure, the motor can lower both the head and foot section with just a single 9 volt battery
  • 4" extension kit can be installed on head, foot or both to extend bed length to 84" or 88"
    Specifications
    Total bed weight assembled: 118 lb
    Maximum patient weight: 350 lbs EVENLY DISTRIBUTED, 450 lb distributed total weight capacity including patient, mattress, rails and accessories
    Overall Bed Size: 84" L x 35" W
    Lift Range: Head – 60, Knee – 30
    Bed Height: Min. 10", Max. 20" (at deck level)

    Warranty
    Bed Frame — 5 Years
    Electrical Components — 2 Years
    All Other Durable Components — 1 Year

    Proudly made in the U.S.A. at our Fond du Lac facility.
