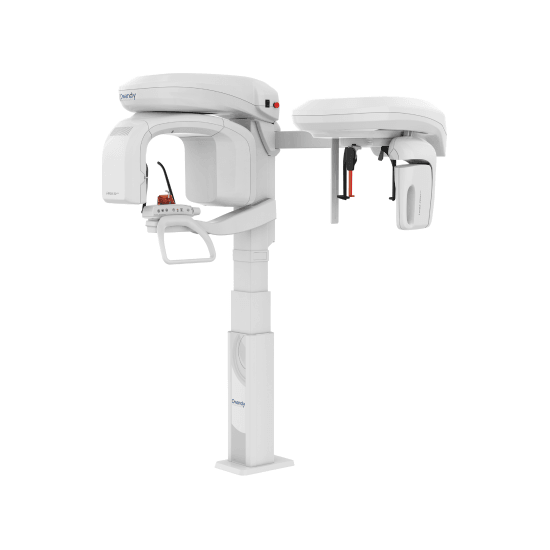

Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray 9304301011

Name: Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray 9304301011
Brand: Manufacturer: Owandy dental Imaging
SKU: Owandy I-MAX Touch 3D Cone Beam 9304301011
Price: 50900.0 USD
Availability: OutOfStock

$50,900.00 USD

Out of stock

Description

Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray

We Offer Free shipping & Free Installation on this Item up to 250 Miles from Miami Florida.

Integrated touch screen for immediate image display

Software ergonomics specially designed for intuitive, touch-screen access to functions. Program examinations via the graphic interface and watch image acquisition in real time.

HD images

The CCD sensor generates high-contrast HD images that allow the dentist to make an accurate diagnosis within seconds.

Complete programs

14 programs available in panoramic mode, including standard, hemi-panoramic, bitewing, sinus & ATM. Choice of 5 formats for the cephalometry module, including frontal, lateral & carpus

Ethernet or stand-alone

The I-Max Touch can be controlled from any PC or via a network. Images can be stored to a USB stick from the control console.

A mobile sensor. Flexible and affordable cephalometry

Choose between panoramic and cephalometric. Choose between single and dual sensors. The sensor can be easily moved using the ergonomic handle.

Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray

Specification

HF generator:
Constant potential
Image receptor:
0,5 EN60336
Total min. filtration:
2,5 mm AI équivalent
Anode voltage:
60 - 86 kV
Anode current:
6 - 10 mA PAN, 6 - 12 mA CEPH
Exposure time:
PAN 13,8 s / CEPH 4,5 s
Column :
Powered telescopic
SID (Source to Image Distance) :
500 mm PAN / 1650 mm CEPH
Digital sensor:
CCD HD + Optical fibre
CCD resolution:
10,4 lp/mm
Connection :
Direct PC acquisition (network cable) and/or integrated touch screen
Archiving :
PC and/or USB stick
Power supply:
100-120 V, 220-240 V, 50/60Hz
Amperage:
8 A

Images

Drawing

Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray

Brochure

brochure

Video

video
