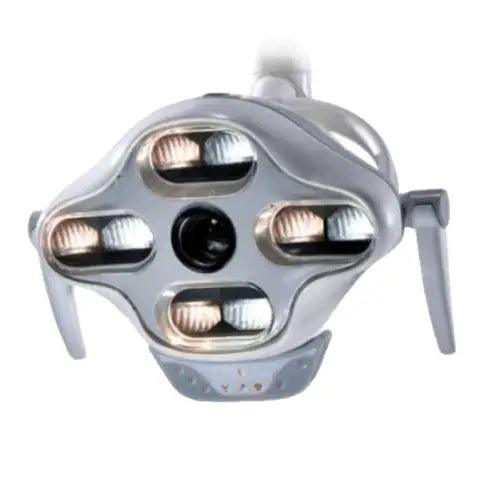

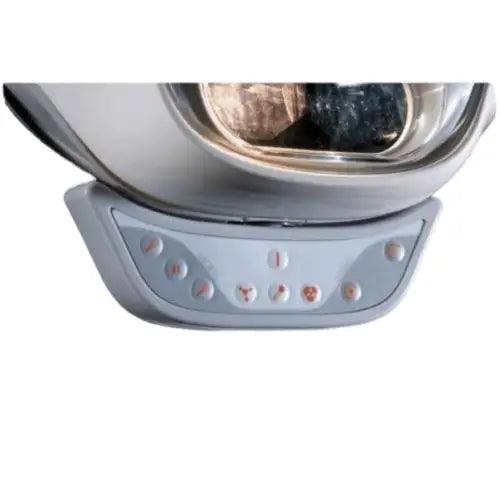

Flight Dental G.Comm Iris View (With Camera) LL-307GIV

Regular price $21,801.78 USD Sale price $21,801.78 USD Regular price $18,634.00 USD
Out of stock
Description

Flight Dental G.Comm Iris View (With Camera) LL-307GIV

LL-307GIV, CL-307GIV, TL-1005IV, TL1006IV

Flight Dental G.Comm IRIS View LED Light (With Camera)
LL-307GIV - G.Comm IRIS View (With Camera) – Chair Mounted
Includes: Gcomm IRIS View with Light Arm, Converter from Component to HDMI
CL-307GIV - G.Comm IRIS View (With Camera) – Ceiling Mounted
Includes: Gcomm IRIS View with Light Arm and Ceiling Mounted Set (65inch/165cm), Converter from Component to HDMI
TL-1005IV - G.Comm IRIS View (With Camera) – Single Track Mounted
Includes: Gcomm IRIS View with Light Arm, Converter from Component to HDMI, Post
TL-1006IV - G.Comm IRIS View (With Camera) – Dual Track Mounted -(Light/Camera with Monitor Bracket) Monitor Sold Separately
Includes: GComm IRIS View with Light Arm, Converter from Component to HDMI, Posts, Monitor Bracket

Camera

Sensor:   1/2.8” CMOS
Resolution:   1920 x 1080px (Full HD)
Zoom:   30x Optical
Working distance:   From 35cm to 80cm
Zoom Speed:   From Wide to Full Zoom (With Autofocus) in 4.6s
Video Output:   Y/Pb/Pr Signal, progressive or interfaced. Scan up to 1/60s. Frame out up to 30fps
White Balance:   Automatic from 3000k to 7500k
Brightness Balance:   Automatic with Wide Dynamic Range Mode
Image Stabilizer:   90% Vibration Correction up to 10Hz

Lamp

Supply Voltage:   12-24Vac 50-60Hz
Maximum Power Absorbed:   50VA
Max Absorbed current:   3A
Illuminated Spot Dimension:   Approx. 70 x 140mm
Brightness Intensity (5 Adjustable Steps):   From 8000 lux to 35000 lux
Colour Temperature (5 Adjustable Steps):   From 4200K to 6000
Focal Length:   70cm
CRI (Colour Rendering Index):   >90%
Light Source:   8 LEDs
Emission Spectrum:   380 – 780 nm

Standard Features
Autofocus with 30X Optical Zoom
Built in WiFi control for light control and camera control through an iPad App – MyLight
Freeze Frame and Recording capability
Automatic White Balance Adjustment from 3000-7500K
90% Vibration Correction up to 10Hz

Benefits

Provides a detailed image of the operating area
Highlights the details that are difficult to see with the Naked eye
Relieves eye strain by allowing the camera to focusing in on a specific area
Allows the multimedia documentation of procedures in high definition
Live Streaming capabilities for recording and viewing operations for conferences, teaching schools, hospitals and university lectures
Improves and facilitates better communication with the patient
Allows better communication during diagnosis phase and education for the patient by providing real-time video streaming.
