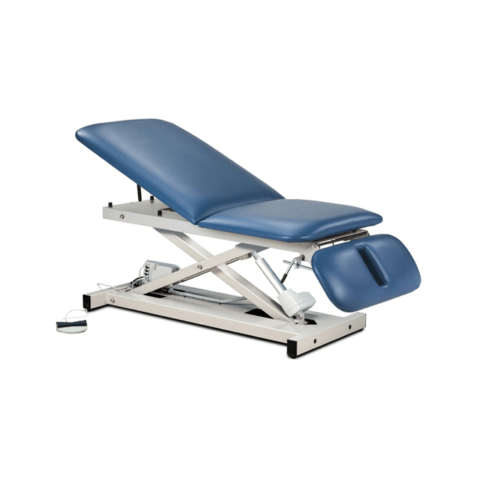

Clinton 80399 Power XL 600 Open Base Power Table
30" Wide/ 600 lbs. Lift Capacity Tables
Clinton 30" wide, 600 lb capacity, Open Base, Power XL Tables feature a larger top and a robust lifting power of up to 600 lbs. Built tough to handle tough tasks, the power XL is the best of the best in open base power equipment.
Clinton 80399 Power XL 600, Open Base, Power Table with Adjust. Backrest and Drop Section
- Features easy-clean, 30" wide top with adjustable backrest and drop section
- Standard drop section has nose hole, but it may be ordered without a nose hole (Please specify when ordering)
- 600 lbs. (272 kg) load capacity under normal use
- Smooth, electric, raise and lower height adjustment
- Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
- Pneumatic backrest cylinder is mounted internally
- Full width backrest hinge adds rigidity for greater support
- Drop section adjusts from either side and lowers up to 80º from flat
- Full width backrest hinge adds rigidity for greater support
- Heavy duty, steel frame is fabricated in the USA by Clinton Industries
- Dependable scissors-lift features an H-leg design for extra stability
- Rounded corner 1" plywood top with 2" of ultra firm padding covered by heavy weight upholstery
- Harden steel bolts and self lubricating pivot bearings for years of dependable service
- Low height may help achieve ADA tax credit
Brochure
Specifications
| 80399 Power XL 600, Open Base, Power Table with Adjust. Backrest and Drop Section | Length | Width | Height Range |
|---|---|---|---|
| 80399 | 76" | 30" | 18" – 35" |
| Backrest | 38" | 30" | |
| Drop Section | 13" | 30" |
Options
OPTIONS
-
030 Paper Dispenser- Power Table
• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide
-
040 Paper Cutter-Power Table
• Clear plastic with elastic strap and buckle
-
034-Paper Dispenser/Cutter Combo-Power Table
-
080 Positioning Straps
• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 straps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners -
082 Side Rails
• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12" -
084 Hand-Held Height Control
• Alternative to foot control
• Stores easily under top when not in useNOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.
Clinton 80399 Power XL 600 Open Base Power Table
Tilt angle (up/down): +90° ~ -35°
Tilt angle (up/down): +90° ~ -35°
